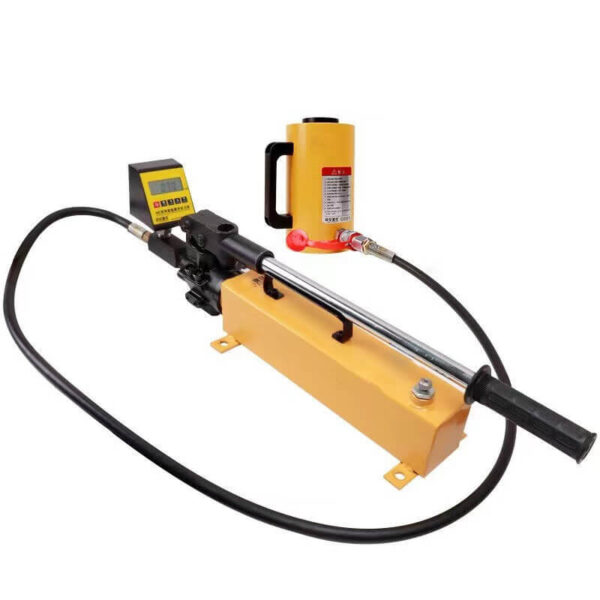

10T/20T/30T/50T/100T Anchor Bolt Pull Out Tester
It is suitable for the anchoring force detection of various anchor rods, anchor cables, steel bars, embedded bars, expansion bolts, chemical anchor bolts, railway spikes, and various anchors. It can also be used for on-site pull-out force detection (test) of glass curtain wall anchor bolts.
Details About 10T/20T/30T/50T/100T Anchor Bolt Pull Out Tester
Standards compliant
GB50367-2013 “Concrete Structure Reinforcement Design Code”
GB50330-2013 “Building Slope Engineering Technical Code”
JGJ120-2012 “Building Foundation Pit Support Technical Code”
CECS 22: 2005 “Geotechnical Anchor (Cable) Technical Code”
GB50007-2011 “Building Foundation Design Code”
GB50550-2010 “Building Structure Reinforcement Engineering Construction Quality Acceptance Code”
JGJ 145-2013 “Concrete Structure Post Anchorage Technical Code”
GB50086-2015 “Geotechnical Anchor and Sprayed Concrete Support Engineering Technical Code”
User friendly design
Memory capacity of 500 data records and functioned with dot-matrix LCD with back lighting.
Zero tracking, peak hold and automatic shut down.
Automatic broken line correction to improve the accuracy of the instrument.
LCD monitor with wide viewing display for reading convenience.
Ultra power-saving design for working time of more than 200 hours.
|
Model |
Cylinder center hole | Cylinder stroke | Measurement range | Cylinder weight | Common
anchorage |

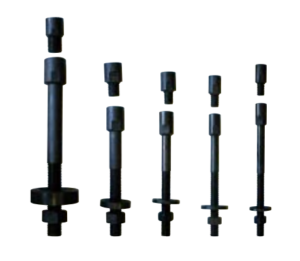

Pull rod | Converter |
|---|---|---|---|---|---|---|---|
| 10T | 27mm | 60mm | 0-100kN | 5.5kg | Φ6-Φ20 | M18 | M6-20 |
| 20T | 35mm | 80mm | 0-200kN | 13kg | Φ6-Φ25 | M24 | M6-22 |
| 30T | 45mm | 80mm | 0-300kN | 15kg | Φ6-Φ32 | M30 | M6-27 |
Specifications (mm): M6, 8, 10, 12, 14, 16, 18, 20, 22, 24,27. A total of 11 types
Specifications (mm): Φ6, 8, 10,12, 14, 16, 18, 20,22, 25, 28, 32, 36,40. A total of 14 types
