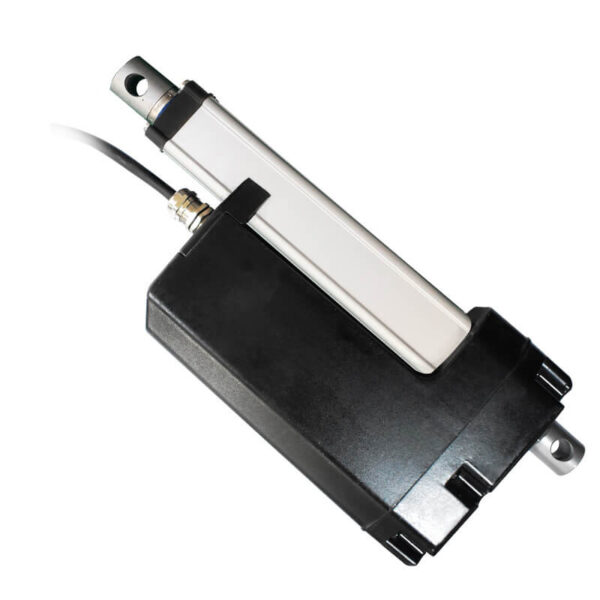

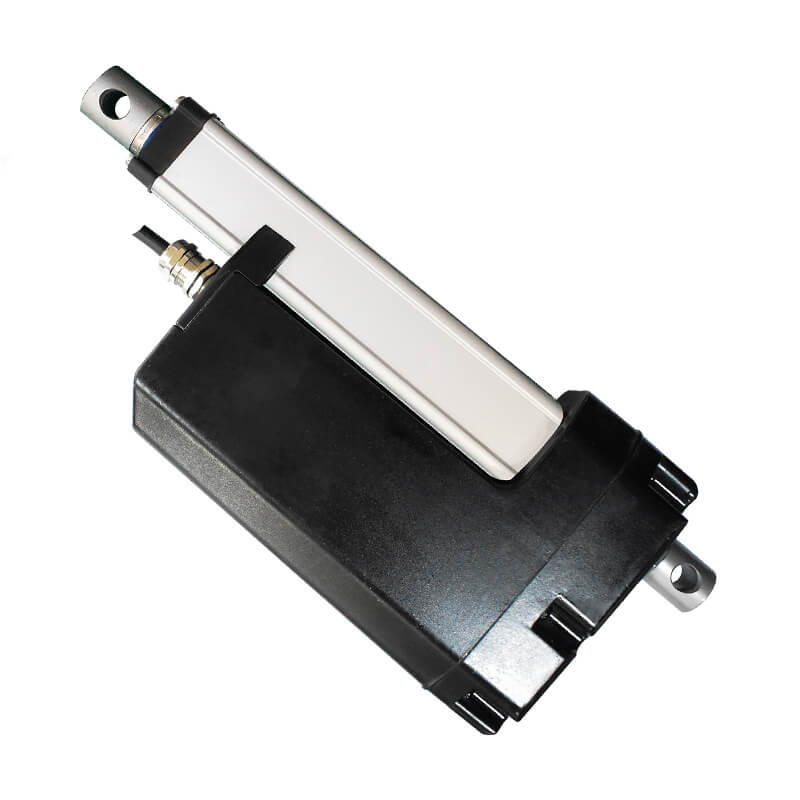

12V/24V/36V/48V/72V DC motor linear actuator
Force: 2000N-12000N,
Speed: 5.5-35mm/s, Stroke: 50-1000mm,
Voltage: 12, 24, 36, 48V brushed DC,
Working Environment: IP65, duty cycle 25%,
Operation Temp.: low -10 or -40℃, high 65℃,
Position Feedback: Hall effect sensor, potentiometer, reed switches, or end-stop signal.
Details About 12V/24V/36V/48V/72V DC motor linear actuator
12V/24V/36V/48V/72V DC motor linear actuator
lifting column, putter-type electric lift column is to achieve a variety of intelligent furniture platform for the development of a product, the product has a large range of stretching, smooth operation, good looks, easy to install, easy to operate, etc. , With the controller and WIFI phone controller, you can achieve remote control electric lift column, push-type electric lift column in the lifting position of any height adjustment to meet the needs of the product height adjustment free adjustment. WIFI controller of the role of mobile wireless remote controller, is the electric putter, lift the column of the dedicated controller. As long as the putter or lift column in the Wifi range, the phone can support 4G operation, even if thousands of miles away from the same control. Played a real distance without restrictions, there are intelligent effects.
| Input Voltage | 72V / 48V / 36V / 24V / 12V DC |
| Load Capacity | 12000N |
| Max Speed | 6.5mm/s(12000N) 38mm/s(3200N) |
| Stroke | Customize |
| Type of Duty | 10%,2min.on / 18min.off |
| Limit switches | Inner |
| Operation Temperature | -20℃~65℃ Customize |
| Protection Class | IP66 |
|
Dynamic Load Force(N)
|
1200
|
750
|
400
|
300
|
200
|
100
|
50
|
|
No load speed (Mm/s)
|
5
|
10
|
20
|
25
|
40
|
50
|
60
|
|
Full load speed (Mm/s)
|
4
|
8
|
16
|
20
|
32
|
40
|
48
|
|
Voltage(VDC)
|
12V/24V/36V/48V DC
|
||||||
