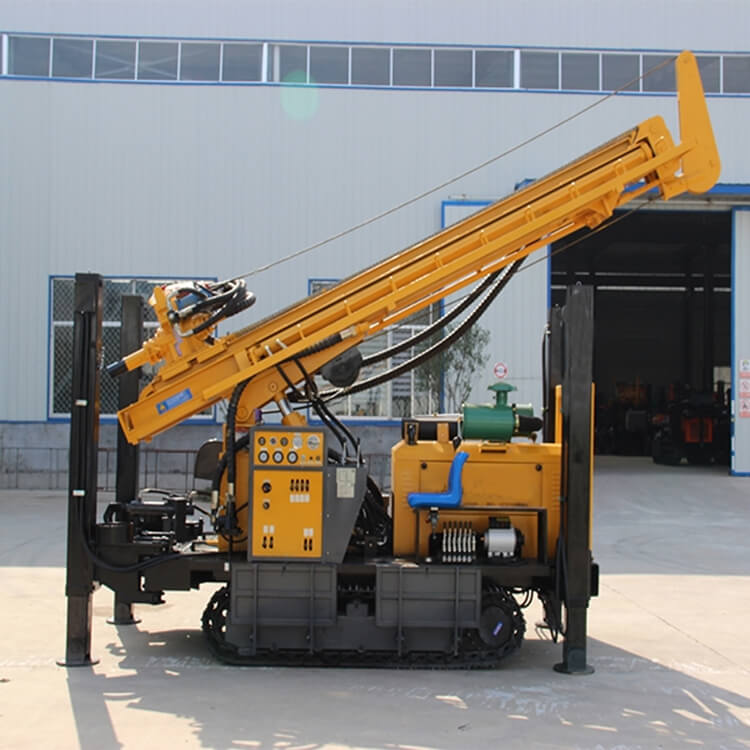

Good quality price FY300 complete 100m 200m 300m water well drill rig
Features of FY300 water well drilling rig:
1. It is an efficient and multifunctional downhole water well drilling equipment that can be used for drilling wells, agricultural irrigation wells, geothermal wells, and other types of wells. Especially suitable for water intake projects in mountainous areas and rock formations.
2. This machine can drill holes in different formations (rock, mud, sand), with a maximum aperture of 300 mm.
3. This machine uses a large torque hydraulic motor power head and brand diesel oil, and the hydraulic control system uses a large diameter hydraulic cylinder. Brand diesel has a two-stage air filtration system protection, and can also directly use the clean air from the air compressor.
4. Unique bump design and centrally controlled operating system make it easy to maintain and operate the machine.
5. This machine adopts an excavator crawler chassis with high off-road performance, and can also be installed on trucks, making it more maneuverable.
6. The rotation and feed speed of the two gears make them work in soil and rock layers.
| Model | FY300 |
|---|---|
| Drilling depth | 300M |
| Maximum opening diameter | 140-325mm |
| Drill pipe diameter | 102mm, 76mm, 89mm |
| Power | 85KW |
| Weight | 7.2T |
Details About Good quality price FY300 complete 100m 200m 300m water well drill rig
Crawler Good quality price 300 meter water well rotary drilling rig for sale
WQ Series Well Drilling Rig is a light, efficient and versatile drilling equipment powered by diesel engine which is from China famous brand. It is mainly suitable for drilling wells, agricultural irrigation wells and other uses, especially for water extraction in mountainous and rock formations engineering.
Main technical data of water well drilling machine
| Model | FY-180 | FY-200 | FY-300 |
| Machine weight(T) | 4.5 | 5.8 | 7 |
| Drilling hold diameter(M) | 140-254 | 140-325 | 140-325 |
| Drilling depth (M) | 180 | 200 | 300 |
| Once-time advance length(M) | 3.3 | 3.3 | 3.4 |
| Walking speed (km/h) | 2.5 | 2.5 | 2.5 |
| Max.climbing capacity | 30 | 30 | 30 |
| Main motor power (kw) | 55 | 70 | 85 |
| Using air pressure (mpa) | 1.7-2.5 | 1.7-3.0 | 1.7-3.0 |
| Air consumption (m3/min) | 17-31 | 17-35 | 17-35 |
| Drill pipe diameter (mm) | 76/89 | 76/89/102 | 76/89/102 |
| Drill pipe length (m) | 1.5/2/3 | 1.5/2/3 | 1.5/2/3 |
| Rig lifting force(N) | 12 | 15 | 18 |
| Swing speed (rpm) | 45-65 | 45-70 | 40-70 |
| Swing torque (N.M) | 3200-4600 | 3500-4800 | 5700-7500 |
Q: Whafs your warranty period?
A: 12 months from winches accepted.
Q: What are the terms of payments?
A: We accept T/T, Western Union, Paypal, and cash.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock, or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: What kind of shipment ways are available?
A: By sea to your nearest port.
By air to your nearest airport.
