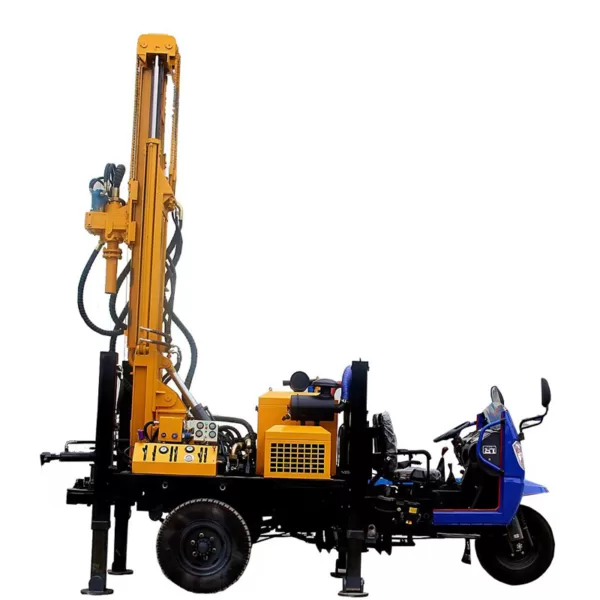

MAX 200M Three-wheel traction water well drilling rig
water well drilling equipment that integrates the functions of water drilling rig and Air drilling rig
Three-wheel traction water well drilling rig
| Model | WQL-200 |
|---|---|
| Drilling depth | 200M |
| Maximum opening diameter | 140-254mm |
| Power | 65KW |
| Drill pipe diameter | 76mm, 89mm |
| Color | Support customization |
| Weight | 4.7T |
Details About MAX 200M Three-wheel traction water well drilling rig
WQL-200 mud/air drilling well machine rock drill water well drilling rig 200 m depth
Main Features:
1.WQL-200 mechanical top drive drilling rig is a kind of drilling and equipment that integrates the functions of water drill and air drill.
2.It adopts a 5-speed manual gearbox, with a wide speed change range, sensitive and convenient forward and reverse switching,and higher transmission efficiency than hydraulic power transmission. Double the power consumption, greatly reduce the power consumption, more efficient and energy-saving.
3.It solves the problems of difficult air DTH drilling in soil layers and lowconstruction efficiency of rotary drilling rigs in hard rock layers, gravel and pebble layers.
Main technical data of water well drilling machine
| Model | WQL-200 |
| Machine weight(T) | 4.7T |
| Drilling hold diameter(M) | 140-254 |
| Drilling depth (M) | 200 |
| Once-time advance length(M) | 3.3 |
| Walking speed (km/h) | 20-40 |
| Max.climbing capacity | 30 |
| Main motor power (kw) | 65 |
| Using air pressure (mpa) | 1.7-2.5 |
| Air consumption (m3/min) | 17-31 |
| Drill pipe diameter (mm) | Φ76 Φ89 |
| Drill pipe length (m) | 1.5 2 3 |
| Rig lifting force(T) | 13 |
| Swing speed (rpm) | 45-65 |
| Swing torque (N.M) | 3400-4700 |
Q: Whafs your warranty period?
A: 12 months from winches accepted.
Q: What are the terms of payments?
A: We accept T/T, Western Union, Paypal, and cash.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock, or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: What kind of shipment ways are available?
A: By sea to your nearest port.
By air to your nearest airport.
