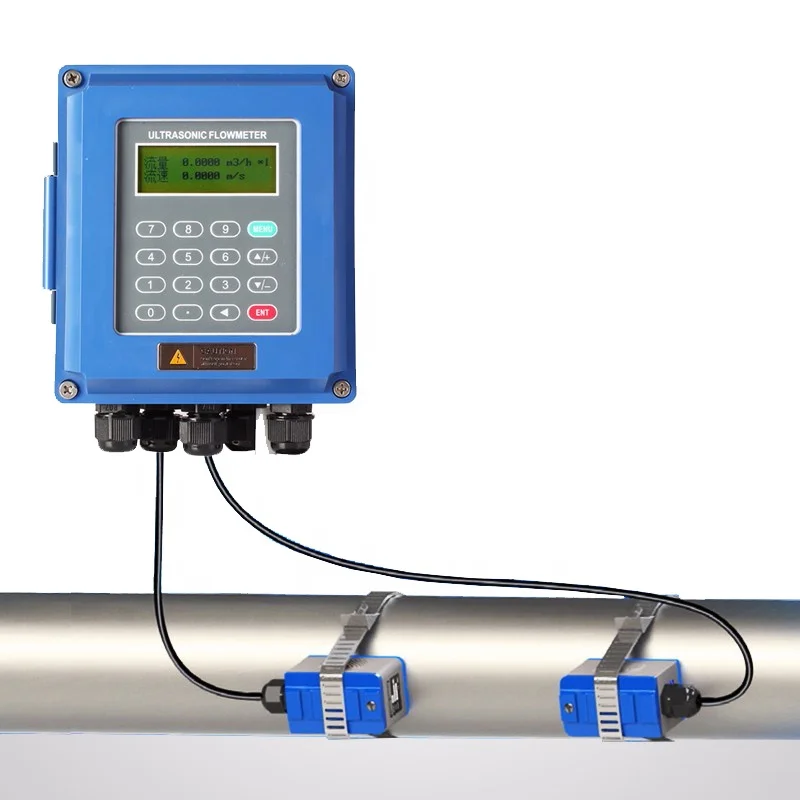

New DN6~DN2000 Portable Wall Mounted Clamp-on Ultrasonic Water Flow Meter
The ultrasonic flowmeter uses the time difference principle of ultrasonic wave propagation in the medium to measure the flow rate.It is mainly used to measure liquid, such as ultra-pure liquid, chemical, raw sewage, reclaimed water, cooling water, river water, plant sewage, etc.
| Color | Blue |
|---|---|
| Weight | 5.5KG |
| Dimension | DN10-DN3000mm |
Details About New DN6~DN2000 Portable Wall Mounted Clamp-on Ultrasonic Water Flow Meter
Product Description
Main technical parameters
Measurement range: 0~±10m/s
Accuracy: flow rate is better than ±1%
Display: 2 x 10 Chinese backlit characters or 2 x 20 character LCD display, support
Three languages: Chinese, English and Italian
Flow direction: Positive and negative two-way metering, and measure positive, negative, net cumulative flow / heat
Data interface: RS485 serial turbulence, can be upgraded by PC computer, support MODBUS and other protocols
Data recording: positive/negative/net accumulations at 512 days, 128 months and 10 days before automatic memory More than 30 times, power off time and flow rate before automatic memory and can be automatically or manually added
Signal output: 1 channel 4-20mA current output 1 relay output 1 channel OCT pulse output (programmable between 6~100ms pulse width, default 200ms)
Signal input: 3 channels of 4-20mA analog input, accuracy 01%, can collect pressure, liquid level, warm sleep and other signals
2-way three-wire PT100 platinum resistor for thermal measurement
Power supply : Ac85~264V or Dc8~36V
Measuring medium: water, sea water, sewage, alcohol, various oils, etc., single, uniform, stable liquid that can guide ultrasonic waves
Media turbidity: ≤ 2000pm and small bubble content
Applicable pipe: Carbon steel, stainless steel, copper, PVc, aluminum, fiberglass and other uniform and dense pipes, allowing lining
Straight pipe section: The sensor installation point is best to meet: upstream 10, downstream 5, from the pump outlet 300 (D is the diameter)
|
Velocity range
|
0~±64m/s forward and reverse measurement
|
|
Pipe diameter
|
DN15~DN6000m
|
|
Fluid temperature
|
-30~160℃
|
|
Nominal diameter
|
DN6~DN2000
|
|
Accuracy class
|
±1%
|
|
Type of fluid
|
A single uniform liquid that can transmit ultrasonic waves, such as seawater, sewage, various oils, etc.
|
|
Sensor material
|
Steel carbon steel, stainless steel 304, stainless steel 316
|
|
Communication Interface
|
Isolated RS485 serial interface
|
|
Display
|
LCD Digital Display
|
|
Power supply
|
DC8~36V or AC85~264V
|
