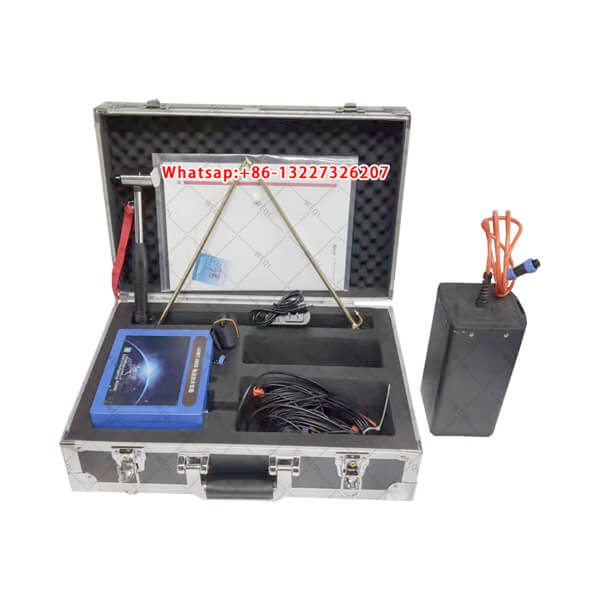

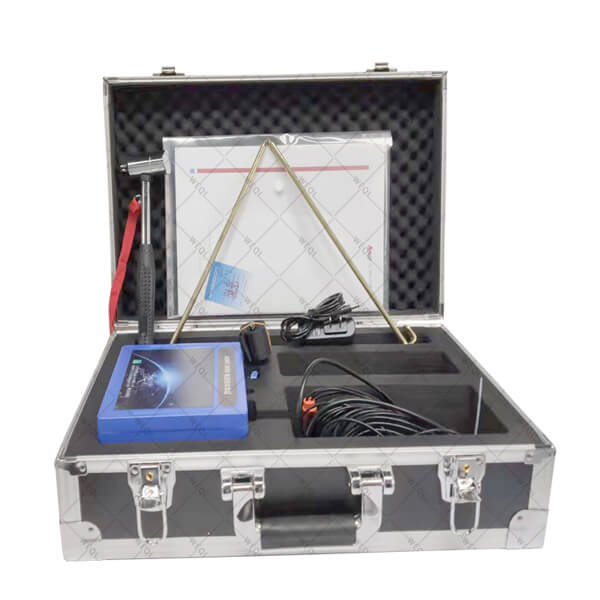

ADMT-200S 200m mobile phone water detector
- Adjustable detection depth：100m/150m/200m
- Standard configuration pull the cable measurement Optional to add additional wireless probe measurement, no need to pull the wire
- Wireless sensor probes can adapt to hard rock or small spaces
- Use Android mobile phone/tablet PC Bluetooth connection
| Model | ADMT-200S |
|---|---|
| Weight | 7.75kg |
| Dimension | 53x39x27cm |
| Color | Blue |
| Max Detector Depth | 200M |
| Measurement mode | MN(Electrodes), TT(Wireless sensor Optional) |
Details About ADMT-200S 200m mobile phone water detector
ADMT-200S 200-meter mobile phone water detector is a device used to detect water and locate underground water sources. It has two different configurations to choose from. The standard configuration is the need for wire measurement. An optional wireless probe is added
It is a portable handheld device, which can be connected to mobile phones through Bluetooth, and use electromagnetic method technology to detect the presence of water. It provides the basis and direction for the driller to find water,ADMT-200S can detect water up to 200 meters deep and is suitable for various applications such as drilling, drilling installation and geological survey.
One of the most popular functions is that it can also be used to determine the depth and thickness data of possible aquifers, and the detection depth can be divided into different gears. The measurement results are presented in 2D maps and 3D maps.
Main parameter:
| Parameter Model | ADMT-200S |
| Maximum depth (m) | ≤200 |
| Optional depth | 100m/150m/200m |
| Connection mode | Serial port, Wifi, Bluetooth 4.0, USB (optional 4G communication) |
| Display | Connect your Android phone |
| Operating system | Android 6.0.1 |
| CPU/AD sampling | ARM Cortex-A7 (AD24-bit 1Msps) |
| Major function | Depth selectable, real-time 2D/3D drawing, removable battery |
| Measurement mode | MN/TT |
| Measuring range | ±5V |
| Frequency range (HZ) | 1-8K |
| Frequency selective filtering | Preset frequency selection, intelligent frequency selection, analog+data filtering, 1-16 times superimposed optional |
| Resolving power | 0.1mV±5% |
| Sampling time (seconds) | 30-280 |
| Battery power consumption | 600mA/H |
| Weight of main engine | 2.3kg |
The device is easy to operate, and can be connected to Android mobile phone via mobile phone Bluetooth. It requires a special application program to be downloaded on the mobile phone, providing a user-friendly interface for data collection and analysis, especially overcoming the feature that it can work without using a network in field measurement
