ADMT-3000S-X 3000m water detection equipment suppliers
- 7 inch touch screen real time Automatic map intelligent imaging
- Adjustable detection depth：200m/300m/400m/500m/600m/800m/1200m/2000m/3000m

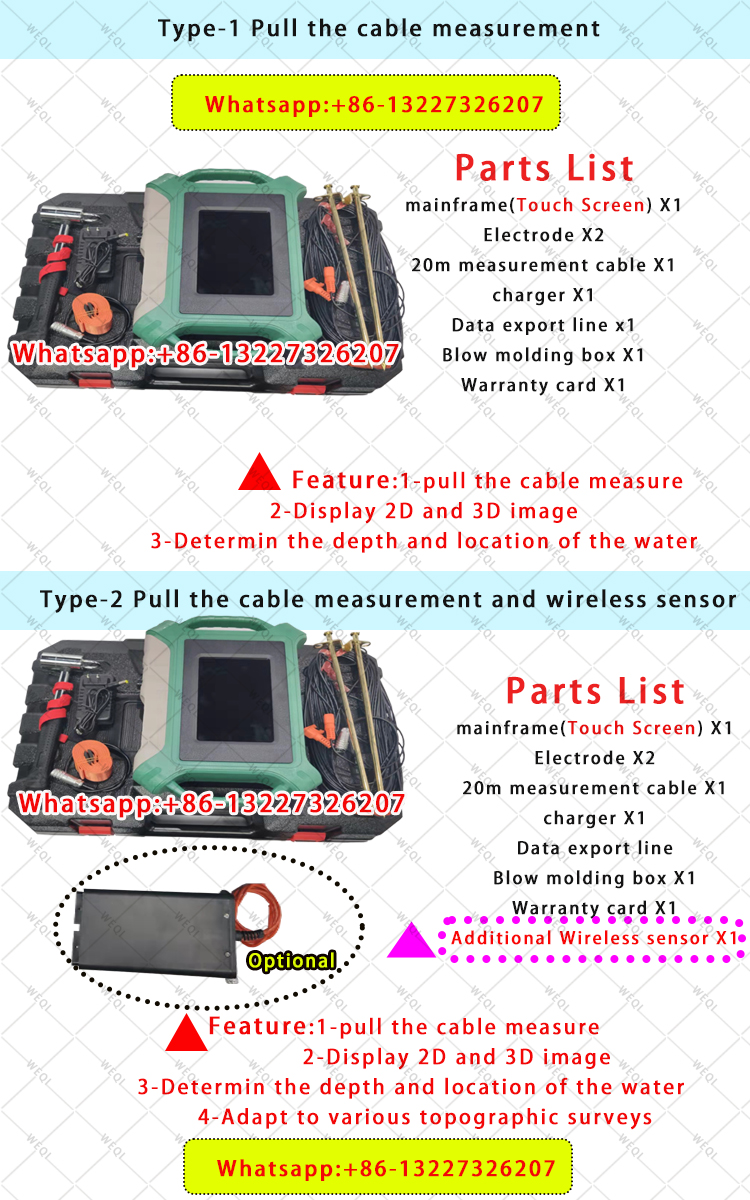

- There are two measurement modes: MN electrode measurement mode pull the cable
- TT measurement with wireless sensor probe adapt to hard rock
| Model | ADMT-3000S-X |
|---|---|
| Weight | 6KG |
| Dimension | 55*19*43CM, 64x45x25CM |
| Color | Blue |
| Max Detector Depth | 3000M |
| Measurement mode | MN(Electrodes), TT(Wireless sensor Optional) |
Details About ADMT-3000S-X 3000m water detection equipment suppliers
ADMT-3000S-X is a high-quality water detection equipment for locating groundwater resources. It is applicable to underground water exploration, mineral exploration, geothermal exploration, coal exploration and other applications requiring deep underground imaging.
The equipment uses the latest electromagnetic technology to detect whether there is water underground.
With the change of the intensity of the electromagnetic field, the equipment can detect the underground conductivity, and create 2D and 3D images of the water-bearing structure to help users accurately locate the location, depth and thickness of water resources.
The maximum detection depth of ADMT-3000S-X is 3000 meters, which is a powerful tool for deep water exploration.
It is also equipped with a 7-inch touch screen display to facilitate the reservoir recording function of reading measurement data and interpreting measurement results.
Product Parameters Similar products at different depth :
| Parameter Model | ADMT-1200S-X | ADMT-3000S-X |
| Maximum depth (m) | ≤1200 | ≤3000 |
| Optional depth | 100m/200m/300m/400m/500m/ 600m/800m/1200m |
200m/300m/400m/500m/600m/ 800m/1200m/2000m/3000m |
| Connection mode | Serial port, Wifi, Bluetooth 4.0, USB (optional 4G communication) | |
| Display | 7-inch IPS wide angle 178 ° visual touch screen | |
| Operating system | Android 6.0.1 | |
| CPU/AD sampling | ARM Cortex-A7 (AD24-bit 1Msps) | |
| Major function | Depth selectable, real-time 2D/3D drawing, removable battery | |
| Measurement mode | MN/TT | |
| Measuring range | ±5V | |
| Frequency range (HZ) |
0.01-8K | |
| Frequency selective filtering | Preset frequency selection, intelligent frequency selection, analog+data filtering, 1-16 times superimposed optional |
|
| Resolving power | 0.01mV±2% | |
| Sampling time (seconds) | 60-900 | |
| Battery power consumption | 600mA/H | |
| Weight of main engine | 2.3kg | |
The detection equipment is designed to be durable, waterproof and dust-proof, and can withstand harsh field conditions. It is light in weight and easy to transport. It is very suitable for field investigation in remote areas.
