ADMT-3000SX-16D 3000m underground water detector machine
- 10 inch Android touch screen
- Adjustable detection depth:200m/300m/400m/500m/600m/800m/1200m/2000m/3000m
- 16-channel real-time automatic 3D/2D image
- Added to wireless Sensor probe can hard rocky ground measurement
| Model | ADMT-3000SX-16D |
|---|---|
| Dimension | 57*39*45CM |
| Max Detector Depth | 3000M |
| Color | Orange |
| Weight | 13.8KG |
| Measurement mode | MN(Electrodes), TT(Wireless sensor Optional) |
Details About ADMT-3000SX-16D 3000m underground water detector machine
ADMT-3000SX-16D is a machine designed to detect water at a depth of 3000 meters underground. It is usually used in geological, hydrological and environmental protection industries.

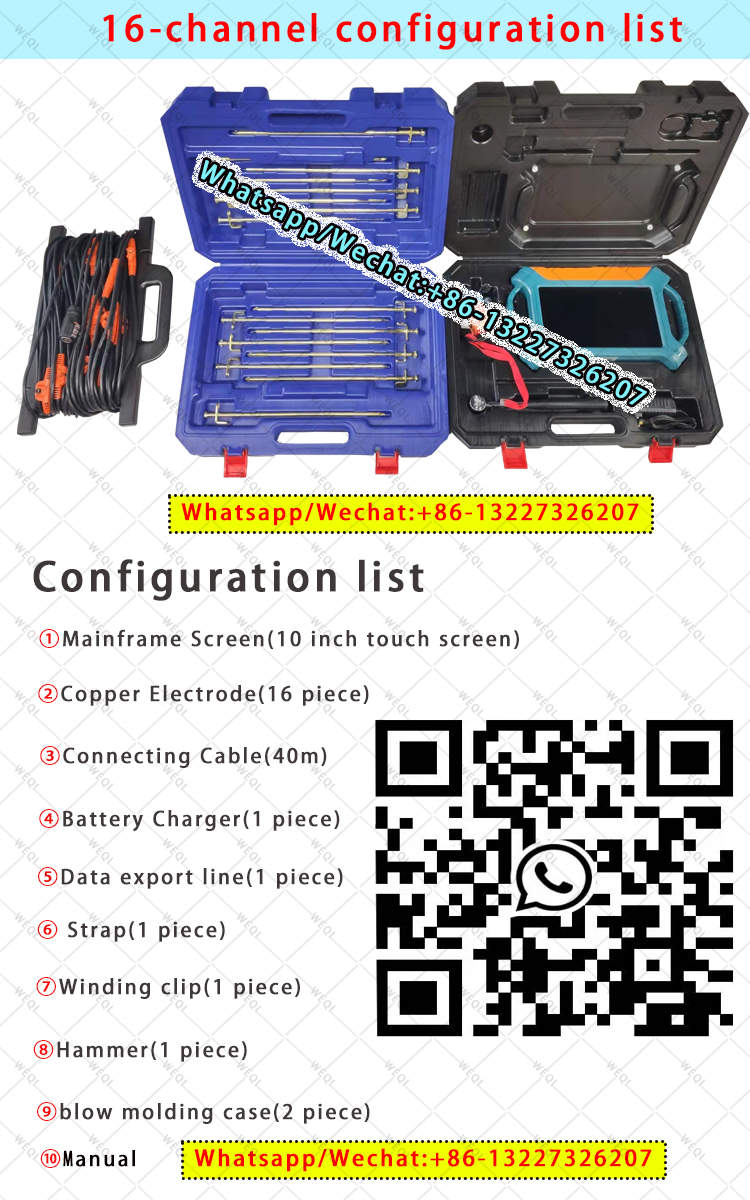

The machine uses a variety of technologies, including electromagnetic field detection and resistivity imaging, to locate and identify the presence of water underground. It is equipped with a set of 16 electrodes, which can collect and collect data at the same time to cover a larger area of underground space.
In order to operate the machine, first insert the electrode equidistantly into the ground at the required position and connect the measuring line. Then start the device, the first and last electrodes transmit signals, and the middle 14 electrodes begin to collect data. The machine uses this information to create 2D or 3D images of the underground space.
The images generated by ADMT-3000SX-16D can be used to identify the location and depth of groundwater resources. This information can then be used for a range of applications, such as planning well drilling, identifying potential pollution sites, and monitoring water resources for environmental management.
Main parameters:
| parameter model | ADMT-300SX-16D | ADMT-500SX-16D | ADMT-1200SX-16D | ADMT-2000SX-16D | ADMT-3000SX-16D |
| Maximum depth(m) | ≤300 | ≤500 | ≤1200 | ≤2000 | ≤3000 |
| Channel input | 16 channels are input at the same time, and the maximum electrode spacing is 2.5m | ||||
| Channel selection | 1—14 | ||||
| Optional depth | Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000m | ||||
| Deep delamination | 10-80 | ||||
| Connection mode | Serial port, Wifi, Bluetooth 4.0, USB (4G communication optional) | ||||
| display | 10.1 inch IPS wide angle 178 ° visual touch screen (1024 × 600） | ||||
| operating system | Android6.0.1 | ||||
| CPU | ARM Cortex-A7（AD24 bit 1Msps） | ||||
| major function | Depth selectable, channel number selectable, real-time 2D/3D drawing, battery detachable | ||||
| Measurement mode | MN/TT | ||||
| measuring range | ±5V | ||||
| frequency range(HZ） | 1-8K | 0.01—6K | |||
| Frequency selective filtering | Preset frequency selection, intelligent frequency selection, analog+data filtering 1-16 times of superposition are optional |
||||
| resolution ratio | 0.01mV±3% | 0.01mV±2% | |||
| Sampling time (seconds) | 60—3600 | 120—5400 | |||
| Battery power consumption | 800mA/H | ||||
| mainframe weight | 2.6kg | ||||
In general, ADMT-3000SX-16D is a powerful tool that can provide valuable insights into groundwater resources and help improve water resources management.
