30M MAX WQ-B30 Portable Core Drill 30M Drill Depth Backpack Core Drilling Rig
| Model | WQ-B30 |
|---|---|
| Drilling depth | 30M |
| Maximum opening diameter | 40-108mm |
| Power | 7.75HP |
| Drill pipe diameter | 42MM, 56MM, 60mm |
| Color | Support customization |
| Weight | 25kg |
Details About 30M MAX WQ-B30 Portable Core Drill 30M Drill Depth Backpack Core Drilling Rig
WQ-B30 Portable Core Drilling Rig is a small portable drilling and sampling drilling equipment which is mainly suitable for high mountains, inconvenient transportation and water shortage areas. This portable core sampling drill is developed by our factory for long-term practice and accumulated experience. It has been improved after many field sampling experiments.
Sampling by this drill can replace traditional manual excavation, trench exploration and well exploration. It can not only speed up the sampling work, but also greatly reduce the damage of vegetation and protect the environment. Through decades of experience accumulation and practical application in dozens of countries and regions around the world, we continue to optimize and improve the quality of products. It is welcomed and loved by customers. It has become the subject of Geology and mineral exploration,
teaching of Geology and engineering geological exploration in China. The inevitable choice of sampling work.
| Model | WQ-B30 |
| Orehole diameter | 10-108mm |
| Drill hole depth | 30M |
| Application of rock types | Soil, Medium hard (10 grade) |
| Water consumption | 0.3L/min |
| Drill pipe diameter | 32mm |
| Engine Brand | Kohler, USA |
| Engine model | XTX775 |
| Drill pipe length | 750mm(including connector) |
| Drill pipe material | Titanium alloys |
| Drill pipe weight | 1.1kg |
| Gasoline Engine Powder | 7.75HP |
| Length * Width * Height | 800*800*800mm |
| Weight | 25KG |

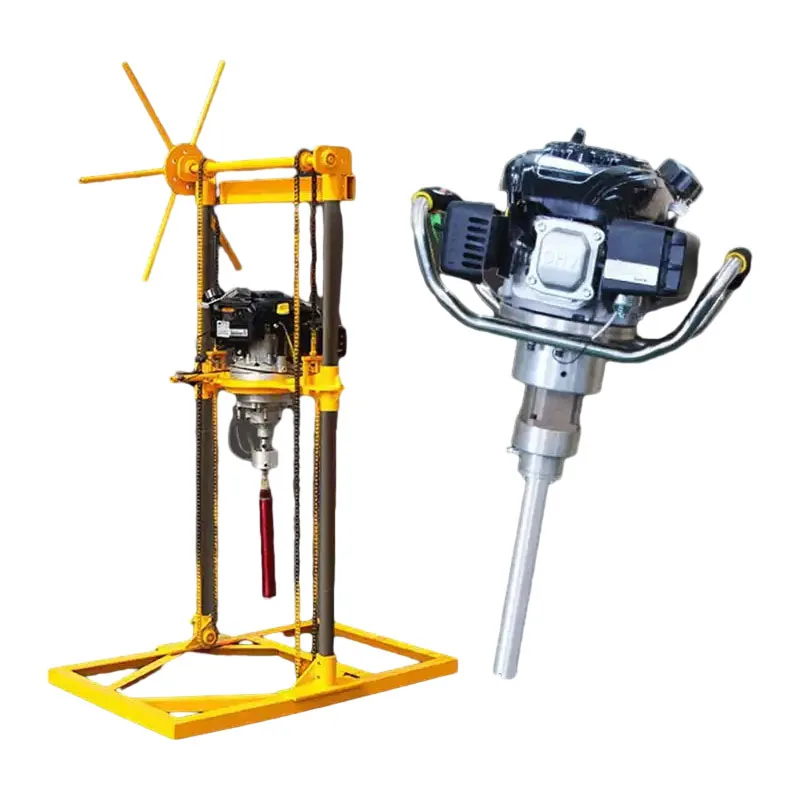

Core Sampling Drilling Rig have two types for your choice.
Portable Drilling Rig can use in many kinds of conditions.
